    Stainless Steel Double Core Mineral Insulated Cable With Stainless Steel Sheath

    Ask Lasest Price
    Brand Name : Pasia
    Model Number : MICU
    Certification : CML ATEXQ578
    Price : USD0.5-2.5/meter FOB Shanghai
    Payment Terms : L/C, T/T
    Supply Ability : 10 Million Meters
    Delivery Time : Within One Month for a Full 20' Container
    • Product Details
    • Company Profile

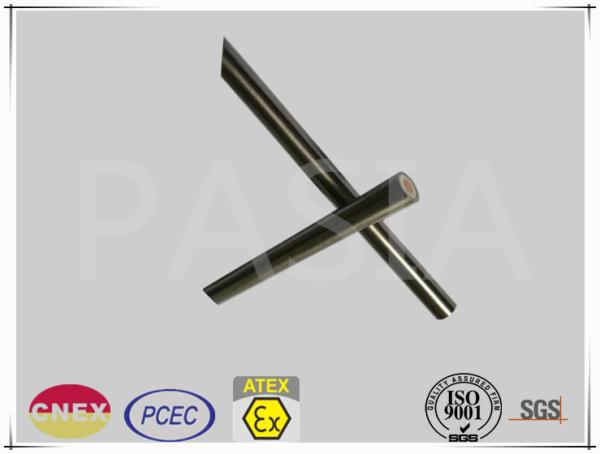

    Stainless Steel Double Core Mineral Insulated Cable With Stainless Steel Sheath


    Stainless Steel Double Core Mineral Insulated Cable With Stainless Steel Sheath


    600 Volt Rated Voltage Double Core Mineral Insulated Heating Cable is a type of mineral insulated heating cable of double conductors with rated voltage 600 Volt. Stainless steel sheath series mineral insulated heating cables can meet the requirements of high temperature conditions and high heating power (up to 269W/m). Pasia provide stainless steel sheathed heating cable with the highest temperature up to 600 ℃. Conductor resistance value ranges from 28000 Ω /km to 19.2 / km. Mineral insulated cable has excellent properties of mechanical strength and corrosion resistance.
    The needs of different power can be met based on Pasia series resistance type heating cable.


    Heating Cable Instruction Code
    MI SS-B 16N12220/60/2520/220/E1
    No. 1 2 3 4 5 6 7

    NO.ItemDetail
    1sheath materialSS
    2cable component structureSee table 1
    3cable codesSee table 2, 3 and 4
    4Heating cable lengthin m
    5Heating cable powerin unit of W
    6Heating cable voltagein V
    7cold end specificationSee table 5


    Cable Code
    1 6 N 12220
    No. 1 2 3 4

    No.ItemDetail
    1Number of core wires1 or 2
    2Voltage grade3=300V, 6=600V
    3Conductor materialK,N
    4cold resistance×1000012220=1.222Ω/m×10000


    MI Heating Cable Specification (600V Double Cores)

    Cable CodeDiameter+20℃ Standard ResistanceMaximum Manufacturing LengthUnit Weight
    mmΩ/mmkg/km
    26N117008.71.1700180216
    26N155007.21.5500195203
    26N240005.02.4000234178
    26N415003.84.1500280160
    26N1100002.911.0000300152
    26N2800002.128.0000350140

    Cond End Specification

    Model :A, D, EModel: B
    Maximum Voltage (V)Maximum Current (amps)Cond End SpecificationMaximum Current (amps)Cold End Specification
    (British)(Metric)(British)(Metric)
    60015E1M120E1M1
    60020E1M125E1M1
    60030E2M240E2M2
    60050E2M270E2M2
    60070E2M2100E2M2


    Note 1: E1 means 1/2" NPT;
    E2 means 3/4" NPT;
    M1 is thread diameter M15;
    M2 is the diameter of thread M20

    Note 2: the length of standard cold end cable is 2 meters. If special required, please contact our professionals


    Application


    Nuclear IndustryConstruction-Asphalt Heating
    Metal Manufacturing Industry- low melting point alloy meltingTank heating
    Extruder barrel heatingHigh temperature industrial pipe heat tracing
    Anti-coagulation or viscosity drop for process mediumAll kinds of industrial electric heaters
