Energy-saving Aluminum Honeycomb Core For Train Floor And Bulkhead
General Instruction:
Due to the weight and speed of the train itself, the train requires
light weight, but high strength materials to make the bulkhead and
floor parts of the train, as well as some bathroom partitions. A
variety of aluminum honeycomb panels and profiles made of
high-strength and lightweight aluminum honeycomb cores meet this
demand. Therefore, aluminum honeycomb cores are a new energy-saving
and environmentally friendly material, which has great usage in the
rail transportation industry.

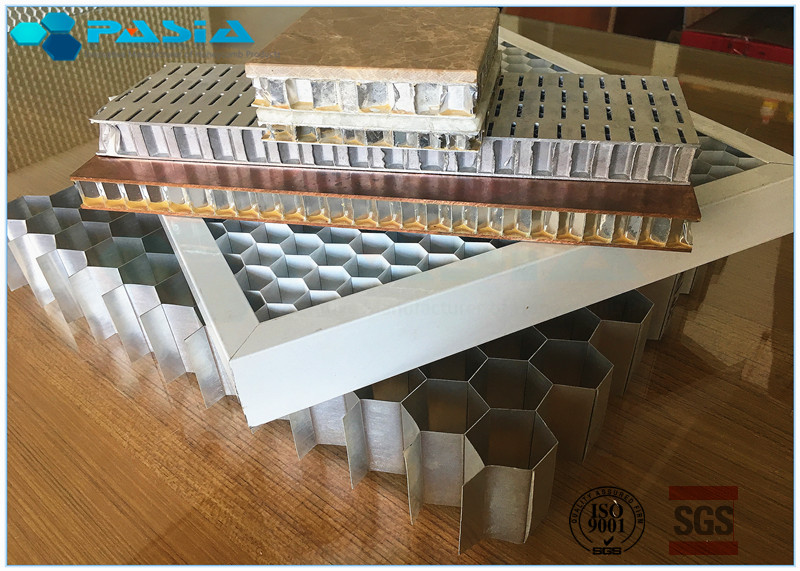

The aluminum honeycomb core is combined with the upper and lower
panels, its weight is much lighter than that of the conventional
steel structure, but the strength is much higher, so it is widely
used in the automotive industry. The reason is that the core is a
typical porous structure, so its density is also low compared to
other sandwich materials, and its weight is also the lightest at
the same volume, which enables aluminum honeycomb core panels to
save a lot of energy in lightweight applications.
Specification of aluminum honeycomb core:
| Item | Unit | Specification | |
| Cell | inch | | 1/8” | | | 3/16” | | 1/4” | | | |
| mm | 2.6 | 3.18 | 3.46 | 4.33 | 4.76 | 5.2 | 6.35 | 6.9 | 8.66 | |
Side
Length | mm | 1.5 | 1.83 | 2 | 2.5 | 2.75 | 3 | 3.7 | 4 | 5 | |
| Foil Thickness | mm | 0.03-
0.05 | 0.03-
0.05 | 0.03- 0.05 | 0.03-
0.06 | 0.03-
0.06 | 0.03- 0.08 | 0.03- 0.08 | 0.03- 0.08 | 0.03-
0.08 | |
| Width | mm | ≤440 | ≤440 | ≤440 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | |
| Length | mm | ≤1500 | ≤1500 | ≤2000 | ≤3000 | ≤3000 | ≤3200 | ≤4000 | ≤4000 | ≤5500 | |
| Height | mm | 1.7~150 | 1.7~150 | 1.7~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | |
Features:
1. Aluminum honeycomb core can be recycled and used as a green
product;
2. Light weight, high strength, good rigidity and tear resistance;
3. Excellent weather resistance: high temperature resistance,
corrosion resistance and aging resistance;
4. The version is large, the modulus is variable, and the flatness
is high;
5. Superior bonding strength;
6. The seam is straight and easy to install;
7. Flame retardant, soundproof and good heat insulation effect;
8. Strong decoration, easy processing, stable performance
Specifications can be customized.
Applications:
Aluminum honeycomb core panels are widely used in aerospace,
transportation, construction, and other fields, for the manufacture
of rocket fairings, aircraft wings and warehouses, train bulkheads
and floors, car skins and doors, the ceiling of the building and
the curtain wall. The wing, tail and the like of the honeycomb
panel and the cockpit or cargo floor, the door partition, etc.,
effectively reduce the weight of the aircraft and improve the
handling sensitivity of the moving parts.
