    Aluminum Honeycomb Sheet Material For Aluminum Honeycomb Composite Marble Board

    Ask Lasest Price
    Brand Name : Pasia
    Model Number : AHC-Q-M846
    Certification : ISO9001-2008
    Price : Negotiable
    Supply Ability : as per specification
    Delivery Time : within one month for a 20' container
    • Product Details
    • Company Profile

    Aluminum Honeycomb Sheet Material For Aluminum Honeycomb Composite Marble Board


    Aluminum Honeycomb Sheet Material For Aluminum Honeycomb Composite Marble Board


    General Instruction:

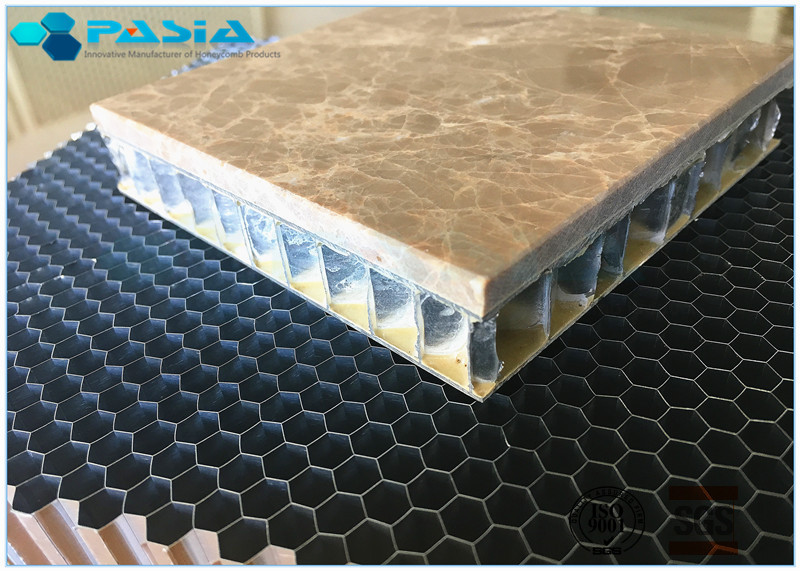

    The marble stone aluminum honeycomb board / panel is 3-5mm stone combined with 10-25mm aluminum honeycomb panel, and is formed by special adhesive bonding.


    For exterior curtain wall, it is recommended that the marble stone thickness of the stone aluminum honeycomb panel is 4-5mm, and the thickness of the aluminum honeycomb panel is not less than 25mm; for the interior wall surface, the stone thickness of the stone aluminum honeycomb panel is recommended to be 3-4mm, and the thickness of the aluminum honeycomb panel is 15mm. For interior ceilings, it is recommended that the stone thickness of the stone aluminum honeycomb panel is 3-4mm, and the thickness of the aluminum honeycomb panel is 15-20mm; for the floor panel, the stone thickness of the stone aluminum honeycomb panel is recommended to be 5-8mm, and the thickness of the aluminum honeycomb panel is 10 -15mm.


    The characteristics of aluminum honeycomb panels:


    (1) Light weight, high strength, high rigidity, stable structure and good wind pressure resistance


    (2) Sound insulation, heat insulation, fire prevention, waterproof and shockproof functions can be

    prominent


    (3) The surface has amazing flatness and diverse thickness


    (4) Strong decoration, easy to install and fast


    Third, the application range of aluminum honeycomb panels: civil construction, public construction projects hotels, hotels, shopping malls, office buildings, hospitals, schools, stations, airports, stadiums, and other interior partition walls, and building exterior walls.


    Features:


    • Elevated use temperatures

    • High thermal conductivity

    • Flame resistant

    • Excellent moisture and corrosion resistance

    • Fungi resistant

    • Low weight/High Strength


    Specifications can be customized.


    Applications:


    Product Tags:

    honeycomb structure



    honeycomb material
