    Refrigerator Deodorant Block Honeycomb Material Aluminum Customized Height

    Ask Lasest Price
    Brand Name : Pasia
    Model Number : AHC-Q-M856
    Certification : ISO9001-2008
    Price : Negotiable
    Supply Ability : as per specification
    Delivery Time : within one month for a 20' container
    • Product Details
    • Company Profile

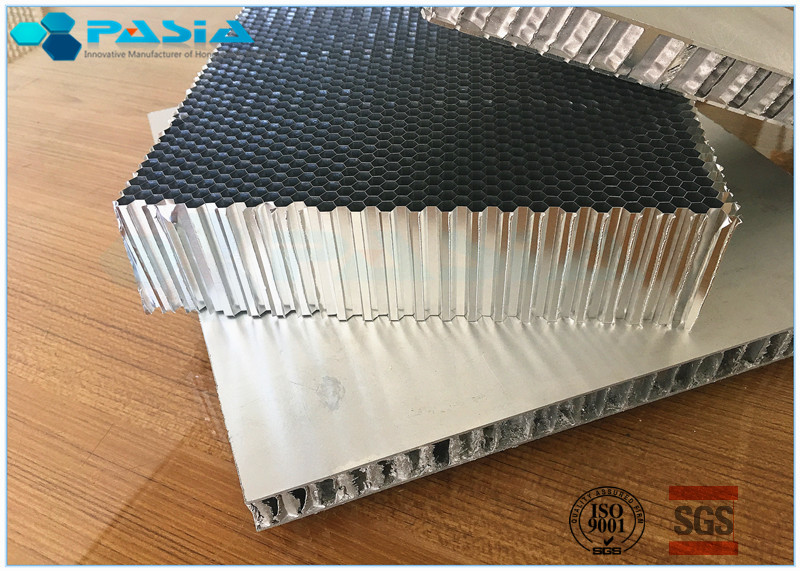

    Refrigerator Deodorant Block Honeycomb Material Aluminum Customized Height

    Refrigerator Deodorant Block Honeycomb Material Aluminum Customized Height


    Product performance (features)


    1. High strength of aluminum honeycomb core: The reason why honeycomb structure becomes the most effective and reasonable structure in nature is because of its regular hexagonal geometry. This shape disperses the external forces well and supports each other, making it a perfect mechanical structure.


    2. Light weight of aluminum honeycomb core: The hexagonal honeycomb core saves a lot of raw materials by virtue of its excellent mechanical structure. Under the premise of ensuring strength, it can use thinner materials, so that the weight is lighter, which means The hexagonal honeycomb core saves raw material costs.


    3. Aluminum honeycomb core heat insulation and sound insulation: Due to the small density of hexagonal honeycomb, the honeycomb wall that transmits heat energy and sound waves is thin, and the heat insulation and sound insulation performance are better than round tube honeycomb.


    4. The aluminum honeycomb core has a small cross-sectional area: the cross-sectional area of ​​the hexagonal honeycomb is often less than 1/2 of that of the round-tube honeycomb under the premise of the same aperture, which makes it possible to use the honeycomb for air-flowing. The hexagonal honeycomb can more effectively pass more air, improve the current sharing efficiency and save energy.


    5. The surface area of ​​the aluminum honeycomb core is large: the hexagonal honeycomb has a larger surface area when the specific gravity is the same. Hexagonal cells are more efficient when using a honeycomb core as a catalyst or filter.


    6. Aluminum honeycomb core is beautiful and regular: With the advancement of the production process, the hexagonal honeycomb arrangement can be very neat and the appearance is very beautiful. Compared with the hexagonal honeycomb core, the round tube honeycomb is difficult to arrange very neatly. The appearance is relatively unregulated.


    7. The bonding area of ​​the entire side of the aluminum honeycomb core is much less intense. Round tube honeycombs are easy to split by hand, while hexagonal honeycombs are difficult to separate them.


    General Instruction:

    Aluminum honeycomb core is made of aluminum foil which is bonded by special high strength and environment-friendly glue. The performance of the aluminum honeycomb core is determined by aluminum foil, joint glue and the specification of the core.

    1. Aluminum foil

    3003H24/5052H18 grade aluminum alloy foil with the surface special treated has been used for producing the core.

    2. Glue

    Modified epoxy glue for high temperature cure process can provide not only sufficient bonding strength, but also environmental protection and high or low temperature resistance properties. The joint strength of aluminum honeycomb core is the keypoint of evaluating its performance, whose minimum requirement should be more than 2.0N/mm.

    Specification of aluminum honeycomb core:

    ItemUnitSpecification
    Cellinch1/8”3/16”1/4”
    mm2.63.183.464.334.765.26.356.98.66

    Side
    Length

    mm1.51.8322.52.7533.745
    Foil Thicknessmm

    0.03-
    0.05

    0.03-
    0.05

    0.03- 0.05

    0.03-
    0.06

    0.03-
    0.06

    0.03- 0.080.03- 0.080.03- 0.08

    0.03-
    0.08

    Widthmm≤440≤440≤440≤1800≤1800≤1800≤1800≤1800≤1800
    Lengthmm≤1500≤1500≤2000≤3000≤3000≤3200≤4000≤4000≤5500
    Heightmm1.7~1501.7~1501.7~1503~1503~1503~1503~1503~1503~150
    ItemUnitSpecification
    Cellinch3/8”1/2”3/4”1”
    mm9.5310.3912.713.8617.3219.0520.7825.4
    Side Lengthmm5.567.33810111215
    Foil Thicknessmm

    0.03-
    0.08

    0.03-
    0.08

    0.03- 0.08

    0.03-
    0.08

    0.03-
    0.08

    0.03- 0.080.03- 0.080.03- 0.08
    Widthmm≤1800≤1800≤1800≤1800≤1800≤1800≤1800≤1800
    Lengthmm≤5700≤6000≤7500≤8000≤10000≤11000≤12000≤15000
    Heightmm3~1503~1503~1503~1503~1503~1503~1503~150


    Specifications can be customized.



    Supply modes:
    - Unexpanded block
    - Unexpanded slice
    - Expanded sheet
    - Pieces cut to size


    Applications:
