25 Mm Thickness Lightweight Marble Panels Match Relevant Fire Resistance Standard

    Buy cheap 25 Mm Thickness Lightweight Marble Panels Match Relevant Fire Resistance Standard from wholesalers

    Buy cheap 25 Mm Thickness Lightweight Marble Panels Match Relevant Fire Resistance Standard from wholesalers
    • Buy cheap 25 Mm Thickness Lightweight Marble Panels Match Relevant Fire Resistance Standard from wholesalers

    25 Mm Thickness Lightweight Marble Panels Match Relevant Fire Resistance Standard

    Ask Lasest Price
    Brand Name : PASIA
    Model Number : PLMH0001
    Certification : ISO9001-2008
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 180,000 square meters per year
    Delivery Time : within 4 weeks for one 20' container loading
    • Product Details
    • Company Profile

    25 Mm Thickness Lightweight Marble Panels Match Relevant Fire Resistance Standard

    Light Weight Marble Stone Honeycomb Panel For Indoor Decoration


    Product Description

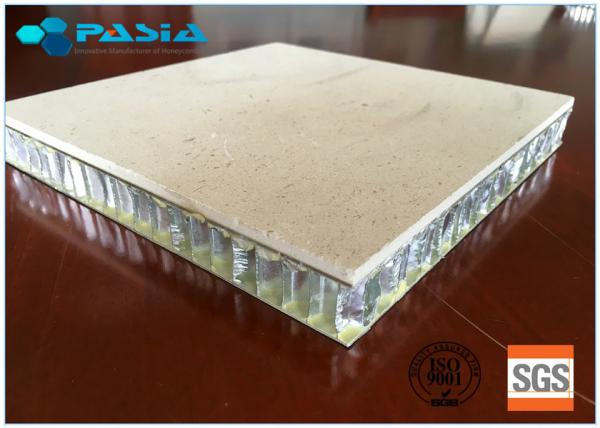

    Light Weight Mable Stone honeycomb panel is a structure sandwiched with aluminium plate, aluminium honeycomb core and very thin marble stone veneer. Its advantages includes light weight, limited radiation pollution, stone material saving, broader size and so on. The mainly application fields are ceiling, curtain wall, indoor wall panel, floors etc, which are being more and more widely used on the decoration and renovation of the industries of construction, vehicles, ships, etc.


    Generally, archetects and designers should be consider carefully to use the marble stone. However, as the purpose to show the beauty of the building and other consideration, the building requires marble stones' color and pattern. Then, marble stone honeycomb panel with light weight and stone surface protected should be the ideal options for this application.


    PASIA's protectvie film is developed by our our R&D team with repeated trials and improvement to make the performance approved by authorized organization and clients. The film shows excellent anti-weathering and anti-corrosion permances when exposed to rigid environment. It makes the natural marble stone surface insulated from the air and outside environment while its transparant and no color film makes the marble surface show 100% to the outside.


    Mechanical Properties


    ASTMUnit10mm15mm20mm
    Unit theory weightkg/m25.45.65.75
    Tensile strengthE8N/mm2806598455
    Endurance capacityE8N/mm2531405279
    ElongationE8%1.21.41.7
    Bending rigidityC393X106N.mm28.0315.438.44
    Bend elasticity rateN/mm2500004060038.44
    Temeprature total extension coefficientD696X10-6N/℃0.240.240.24
    Heat conduction rateD976Kcal/mhr℃0.230.190.15
    Heat transform temperatureD648200200200
    Bonding strengthC297121212
    Surtace smoothness1mm/M.Maximum deviation:1mm/M
    Flame retardabt propertyNonflammable,match relevant fire resistance standard
    Soundproof functionBe decided by layout of printed sheet installation angle,0-3dB

    Marble Stone TypeColorLocationCountry
    Carrara marblewhite or blue-grayCarrara, TuscanyItaly
    Connemara marblegreenConnemara, County GalwayIreland
    Creole marblewhite and blue/blackPickens County, GeorgiaUnited States
    Etowah marblepink, salmon, rosePickens County, GeorgiaUnited States
    Murphy marblewhitePickens and Gilmer Counties, GeorgiaUnited States
    Parian marblepure-white, fine-grainedIsland of Paros (Πάρος), South AegeanGreece

    Technical Options


    Thickness of Backing Panel8-50 mm
    Panel Thickness (Standard)

    20 mm for indoor; 25 mm for outdoor

    (6mm stone surface + 19mm backing panel commonly used) or customized

    Backing Panel Makeup

    (Interior curtain wall)

    Both sides 0.7mm, 0.8mm mill Aluminum panel
    StoneMable / Granite / Limestone / Sandstone / Travetine,etc.
    FinishPolished / Honed / Flammed / Hammer Bush
    Cell Size (Standard)A6, 0.06mm
    AdhesiveAero Grade Epoxy Adhesive or PU glue
    Anchoring BracketsAluminum or Stainless Steel
    Application

    Interior wall, floor, ceiling, counter top;

    Exterior wall, cladding, special parts etc;

    Shipbuilding, Train, Aircrafts

    CertificationNOA for High Velocity Hurricane Zone/Warnock&Hersey
    Maximum Dimension (mm)1500×3000 , or Subject to slab size
