    Air Flowing Holes Punched Metal Honeycomb Core Outdoor Decoration Panel Use

    Ask Lasest Price
    Brand Name : Pasia
    Model Number : AHCxx-xx-xx
    Certification : ISO9001-2008
    Price : Negotiable
    Supply Ability : as per specification
    Delivery Time : within one month for a 20' container
    • Product Details
    • Company Profile

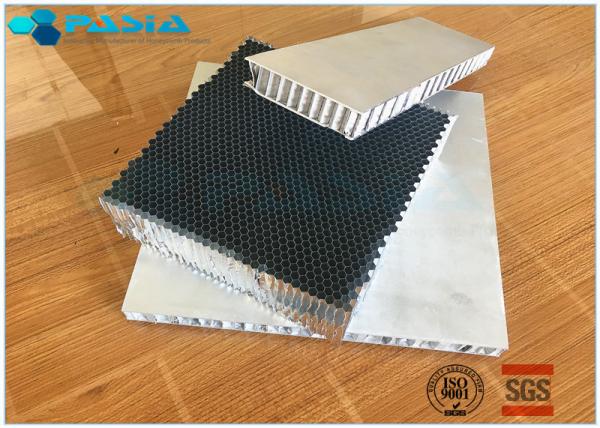

    Air Flowing Holes Punched Metal Honeycomb Core Outdoor Decoration Panel Use

    Air Flowing Holes Punched Aluminium Honeycomb Core For Outdoor Decoration Panel Use

    Air Flowing Holes Punched Aluminium Honeycomb Core For Outdoor Decoration Panel Use is a lightweight core material which has punched air flow holes on the aluminum foil. The finished aluminum honeycomb panel offers superior flatness and dimetional stability against the regular aluminum honeycomb core panel because the heat and expanding strength can be distributed from one core to the other because of the air flow holes on the foil.


    Features:


    1. Elevated use temperatures
    2. High thermal conductivity
    3. Flame resistant
    5. Fungi resistant
    6. Low weight/High Strength
    4. Excellent moisture and corrosion resistance

    General Instruction:

    Aluminum honeycomb core is made of aluminum foil which is bonded by special high strength and environment-friendly glue. The performance of the aluminum honeycomb core is determined by aluminum foil, joint glue and the specification of the core.

    1. Aluminum foil

    3003H24/5052H18 grade aluminum alloy foil with the surface special treated has been used for producing the core.

    2. Glue

    Modified epoxy glue for high temperature cure process can provide not only sufficient bonding strength, but also environmental protection and high or low temperature resistance properties. The joint strength of aluminum honeycomb core is the keypoint of evaluating its performance, whose minimum requirement should be more than 2.0N/mm.

    Specification of aluminum honeycomb core:

    ItemUnitSpecification
    Cellinch1/8”3/16”1/4”
    mm2.63.183.464.334.765.26.356.98.66

    Side
    Length

    mm1.51.8322.52.7533.745
    Foil Thicknessmm

    0.03-
    0.05

    0.03-
    0.05

    0.03- 0.05

    0.03-
    0.06

    0.03-
    0.06

    0.03- 0.080.03- 0.080.03- 0.08

    0.03-
    0.08

    Widthmm≤440≤440≤440≤1800≤1800≤1800≤1800≤1800≤1800
    Lengthmm≤1500≤1500≤2000≤3000≤3000≤3200≤4000≤4000≤5500
    Heightmm1.7~1501.7~1501.7~1503~1503~1503~1503~1503~1503~150
    ItemUnitSpecification
    Cellinch3/8”1/2”3/4”1”
    mm9.5310.3912.713.8617.3219.0520.7825.4
    Side Lengthmm5.567.33810111215
    Foil Thicknessmm

    0.03-
    0.08

    0.03-
    0.08

    0.03- 0.08

    0.03-
    0.08

    0.03-
    0.08

    0.03- 0.080.03- 0.080.03- 0.08
    Widthmm≤1800≤1800≤1800≤1800≤1800≤1800≤1800≤1800
    Lengthmm≤5700≤6000≤7500≤8000≤10000≤11000≤12000≤15000
    Heightmm3~1503~1503~1503~1503~1503~1503~1503~150


    Specifications can be customized.


    Supply modes:
    - Unexpanded block
    - Unexpanded slice
    - Expanded sheet
    - Pieces cut to size


    Applications:


    3003 honeycomb uses include air/light directionalization, energy absorption, tooling, ceiling
    and floor panels, counter tops and other applications for which elevated physical and mechanical properties are not required.
