Wood Pattern Imitation Aluminium Honeycomb Panel for Used on Furniture with Edge RHS Sealed

Product Description

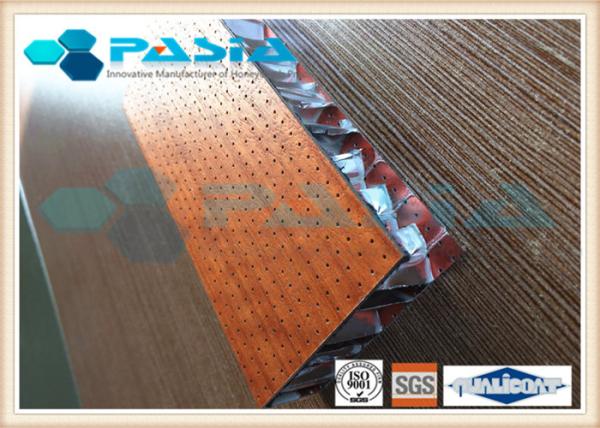

Wood Pattern Imitation Aluminium Honeycomb Panel for Used on Furniture with Edge RHS Sealed is an aluminum honeycomb panel with two face plates coated with wooden pattern and the edge sealed with RHS. The furniture panels may required an artistic wood pattern on the surface by the designers or manufacturers. The real solid wood has been restricted year by year because of the environment and forestry protection as well as its own shortage. However, the wood pattern imitation on the surface of aluminum honeycomb panel can meet the luxurious real solid wood appearance but the composite panel shows better performance such as light weight, high strength, versatile on shape, shock absorbing, sound and heat insulation and so on, therefore has been widely used by the furniture industry. It has the following characteristics:

1. the flat, nice and smooth aluminum surface;

2. Very high coating layer rigidity and strong adhesion;

3. Acid, boiling, weathering and alkali resistance and anti-shock performance;

4. Better than the real wood decoration effect after the wood imitation treatment

General Description

Aluminum honeycomb panel is a bonded sandwich structure system of two surface aluminium plates and one honeycomb cores with a special purpose adhesive. Industrial used aluminium honeycomb panel will add some more processes such as surface treatment, edging, embedding, carving and so on to make the panel suitable for special conditions. It has been widely used by the industries of civil construction, transportation, exhibition, signage, elevator, clean room etc. The honeycomb technology is from aerospace technology. The whole production process is finished in the modern factory, using hot pressing or vacuum pressing technology. Due to the high thermal conductivity between the aluminum plates and honeycomb, it is synchronized the thermal expansion and contraction of the inside and outside aluminium material. There are small holes on the honeycomb core foil wall so that the air is free of flowing inside the panel box. Furthermore, sliding mounting buckle system does not cause structural deformation during thermal expansion and contraction.

Features

The center material is aluminum hexagonal honeycomb with a small density (about 3 to 7 kg per square meter), about 1/5 of the weight of wood with the same area and thickness, 1/6 of the glass, 1/7 of solid aluminium, which greatly reduced the building load and construction cost. Thanks to the air contained in the core, the panel can be sound and thermal insulated. Because of no combustible material contained, the fire rating can be at least B1 level. The panel performs well also on waterproof, moisture-proof, no harmful gas release, with a high unit mass of the specific strength and stiffness, not easy to deformation, completely overcoming the collapse and deformation in the center area if with large panel. The panel edge can be cut depending on real conditions. The PVDF coating can guarantee the product life more than 30 years.

After surface treated with corrosion resistant fluorocarbon resin, it can be widely used on curtain wall, roof, large façade, signs and interior decoration. The front plate of the aluminum honeycomb panel is painted with E. C. C. A. quality standards PVDF fluorocarbon paint with ordinary color or metallic color, so the surface has excellent weather resistance.

In case of heavy rain, there is particularly large noise when the raindrops hit the aluminum veneer or aluminum-plastic panel, while honeycomb panel can avoid this situation. Aluminum honeycomb panels are generally made of fluorocarbon coated aluminum plates. The continuous roller coating with PVDF material is the most important point to avoid color difference and flat coating film. Based on this, it can keep the exterior building with bright color for long time.

Mechanical Properties

Application:

Furniture Panels for Use Indoor, Ship, Yacht, Train and Airplane
