    Edge Folded Aircraft Honeycomb Floor Panels High Impact Strength 6*1.5 M2 Size

    Ask Lasest Price
    Brand Name : Pasia
    Model Number : AHP25(1+13+1)-0.05/6-PC
    Certification : ISO9001-2008
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500,000 m2 per year
    Delivery Time : Within 4 weeks after order and down payment
    • Product Details
    • Company Profile

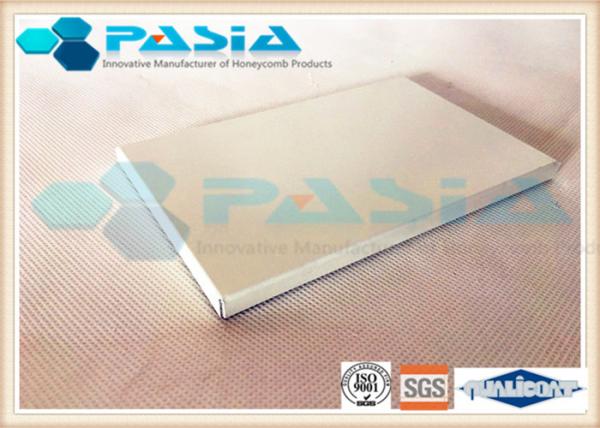

    Edge Folded Aircraft Honeycomb Floor Panels High Impact Strength 6*1.5 M2 Size

    Edge Folded Aluminium Honeycomb Panel Width More than 1.5 Meters
    Brushed Surface

    Product Description

    Edge folded Aluminum honeycomb panel is the simplest edge treatment
    method. Normally, the extra extrusion margin will be reserved to be
    folded  for the upper surface plate. But the aluminium honeycomb
    core should be strictly distributed at the side of the folded edge
    to make sure the edge is reinforced strong enough. After folding,
    the gap between the folded plate and bottom plate should be sealed
    with structural glue and reinforced so that the strength and
    sealing should be perfect. The folding angle can be treated to be
    square or round based on customized requirements. Technically
    speaking, if clients require folded edge, before the aluminium
    honeycomb panel is sandwiched, the space of the plate and honeycomb
    core should be pretreated to be fit the folding request. The forced
    folding process to the regular aluminium honeycomb panel should be
    prohibited because it will hurt the honeycomb core therefore the
    strength of the honeycomb panel will be greatly lowered down.
    The width of the aluminium honeycomb panel have been expected to be
    more than q.5 meters to be suitable for more real application while
    the 1.5 meters' width is a common limit for most of the plant and
    raw material suppliers. Pasia is able to produce the width up to
    customers's requirement. Nowadays, the decoration and renovation
    industries requires wider panel as the building scale is becoming
    larger and larger while the lifting machines are capable to do so.

    Surface Brushed aluminium honeycomb panel is friction treated to get strand-like metal quality. Therefore this surface treatment method has been more and more widely used for the decoration industry especially on the building decoration and furniture industries.


    Other Technical options


    Aluminum Grade3003/5052/2024
    Thickness Of Aluminum sheet
    0.5-2.0mm
    Panel Thickness≥5mm
    CoatingPVDF/PE Powder coating or roller coating, mill or brush finish, perforating and son
    ColourCustomized Colour
    ApplicationExterior Cladding / InteriorWall / Furniture
    CertificateWH / ISO / COC / CMA / PSB / SGS
    FeatureLightweight / Large-area / High Impact Strength / Fast Installation / Cost contral
    Maximum Dimension1500×6000mm, oversize customized

    General Description


    Aluminum honeycomb panel is a bonded sandwich structure system of two surface aluminium plates and one honeycomb cores with a special purpose adhesive. Industrial used aluminium honeycomb panel will add some more processes such as surface treatment, edging, embedding, carving and so on to make the panel suitable for special conditions. It has been widely used by the industries of civil construction, transportation, exhibition, signage, elevator, clean room etc. The honeycomb technology is from aerospace technology. The whole production process is finished in the modern factory, using hot pressing or vacuum pressing technology. Due to the high thermal conductivity between the aluminum plates and honeycomb, it is synchronized the thermal expansion and contraction of the inside and outside aluminium material. There are small holes on the honeycomb core foil wall so that the air is free of flowing inside the panel box. Furthermore, sliding mounting buckle system does not cause structural deformation during thermal expansion and contraction.


    Honeycomb Core


    Side lengthIncircle DiameterFoil ThicknessMax. Expanded Size (W*L)
    mmmminchmmmm
    1.833.1751/80.041600x2000
    0.061600x1600
    23.1751/80.041600x2000
    0.061600x1600
    2.54.2331/60.041600x2200
    0.061600x2000
    35.0801/50.041600x2400
    0.061600x2200
    0.081600x2000
    0.101600x1800
    46.3501/40.041600x3100
    0.061600x2400
    0.081600x2200
    0.101600x2000
    58.4671/30.041600x4000
    0.061600x3000
    0.081600x2200
    0.101600x2000
    69.5253/80.041600x4600
    0.061600x3600
    0.081600x2800
    0.101600x2400
    7.512.71/20.041600x6000
    0.061600x4000
    1019.053/40.041600x7500
    0.061600x5000
    1220.324/50.041600x9000
    0.061600x6000
    1525.410.041600x12000
    0.061600x7500
    2034.9251 3/80.041600x15000
    0.061600x10000
    3050.820.041600x20000
    0.061600x15000

    Features


    The center material is aluminum hexagonal honeycomb with a small density (about 3 to 7 kg per square meter), about 1/5 of the weight of wood with the same area and thickness, 1/6 of the glass, 1/7 of solid aluminium, which greatly reduced the building load and construction cost. Thanks to the air contained in the core, the panel can be sound and thermal insulated. Because of no combustible material contained, the fire rating can be at least B1 level. The panel performs well also on waterproof, moisture-proof, no harmful gas release, with a high unit mass of the specific strength and stiffness, not easy to deformation, completely overcoming the collapse and deformation in the center area if with large panel. The panel edge can be cut depending on real conditions. The PVDF coating can guarantee the product life more than 30 years.


    After surface treated with corrosion resistant fluorocarbon resin, it can be widely used on curtain wall, roof, large façade, signs and interior decoration. The front plate of the aluminum honeycomb panel is painted with E. C. C. A. quality standards PVDF fluorocarbon paint with ordinary color or metallic color, so the surface has excellent weather resistance.


    In case of heavy rain, there is particularly large noise when the raindrops hit the aluminum veneer or aluminum-plastic panel, while honeycomb panel can avoid this situation. Aluminum honeycomb panels are generally made of fluorocarbon coated aluminum plates. The continuous roller coating with PVDF material is the most important point to avoid color difference and flat coating film. Based on this, it can keep the exterior building with bright color for long time.


    Application:


    (1) building external curtain wall panel

    (2) interior decoration works

    (3) billboards

    (4) ship building

    (5) aviation manufacturing industry

    (6) indoor partition and commodity display stand

    (7) Commercial vehicle and container truck body

    (8) bus, train and subway use

    (9)With strict environmental requirements of the modern furniture industry, aluminum honeycomb panel is an ideal material to produce furniture. Depending on Its completely non-toxic green quality, it is not necessary for the furniture manufacturers to process environmental procedures. In addition, the surface veneer for aluminum honeycomb panels can be diversified such as solid wood, aluminum, gypsum board, natural marble etc

    (10) aluminum honeycomb panel partition: the emergence of aluminum honeycomb panel partition breaks the traditional partition mode, with a noble and fresh style.
