Ultra Long Oversized Aluminium Honeycomb Panel 10 mm Thickness with
Mill Finished Surface
Product Description
Nowadays, the decoration and renovation industries requires longer
panel as the building scale is becoming larger and larger, the
lifting machines are capable to do so. The length of the aluminium
honeycomb panel should be more than 6 meters to be suitable for
real application. Pasia is able to produce the length up to
customers's requirement. 10 mm aluminium honeycomb panel has been
very popular for a number of applications including indoor and
outdoor decoration, shipbuiding, train floor and wall panel and so
on. Milled finish has the following advantages: 1. save the
material and process cost; 2. can support further process; 3.
suitable for many specific application field. There is classical
examples of the mill finished 10mm thick aluminium honeycomb panel
which was used as the floor panel for the train cargo.
General Description
Aluminum honeycomb panel is a bonded sandwich structure system of
two surface aluminium plates and one honeycomb cores with a special
purpose adhesive. Industrial used aluminium honeycomb panel will
add some more processes such as surface treatment, edging,
embedding, carving and so on to make the panel suitable for special
conditions. It has been widely used by the industries of civil
construction, transportation, exhibition, signage, elevator, clean
room etc. The honeycomb technology is from aerospace technology.
The whole production process is finished in the modern factory,
using hot pressing or vacuum pressing technology. Due to the high
thermal conductivity between the aluminum plates and honeycomb, it
is synchronized the thermal expansion and contraction of the inside
and outside aluminium material. There are small holes on the
honeycomb core foil wall so that the air is free of flowing inside
the panel box. Furthermore, sliding mounting buckle system does not
cause structural deformation during thermal expansion and
contraction.
| No. | Material | Thickness | Specification | Edge Treatment | Pre-treatment |
| 1 | Aluminium | 5mm | A3003 | Folded | Screw Enbedded |
| 2 | Aluminium | 10mm | A5052 | RHS Sealed | Perforated |
| 3 | Aluminium | 25mm | A2024 | Glue Sealed | |
| 4 | Aluminium | customized | A5056 | Open Edge | |
Features
The center material is aluminum hexagonal honeycomb with a small
density (about 3 to 7 kg per square meter), about 1/5 of the weight
of wood with the same area and thickness, 1/6 of the glass, 1/7 of
solid aluminium, which greatly reduced the building load and
construction cost. Thanks to the air contained in the core, the
panel can be sound and thermal insulated. Because of no combustible
material contained, the fire rating can be at least B1 level. The
panel performs well also on waterproof, moisture-proof, no harmful
gas release, with a high unit mass of the specific strength and
stiffness, not easy to deformation, completely overcoming the
collapse and deformation in the center area if with large panel.
The panel edge can be cut depending on real conditions. The PVDF
coating can guarantee the product life more than 30 years.
After surface treated with corrosion resistant fluorocarbon resin,
it can be widely used on curtain wall, roof, large façade, signs
and interior decoration. The front plate of the aluminum honeycomb
panel is painted with E. C. C. A. quality standards PVDF
fluorocarbon paint with ordinary color or metallic color, so the
surface has excellent weather resistance.
In case of heavy rain, there is particularly large noise when the
raindrops hit the aluminum veneer or aluminum-plastic panel, while
honeycomb panel can avoid this situation. Aluminum honeycomb panels
are generally made of fluorocarbon coated aluminum plates. The
continuous roller coating with PVDF material is the most important
point to avoid color difference and flat coating film. Based on
this, it can keep the exterior building with bright color for long
time.
Application

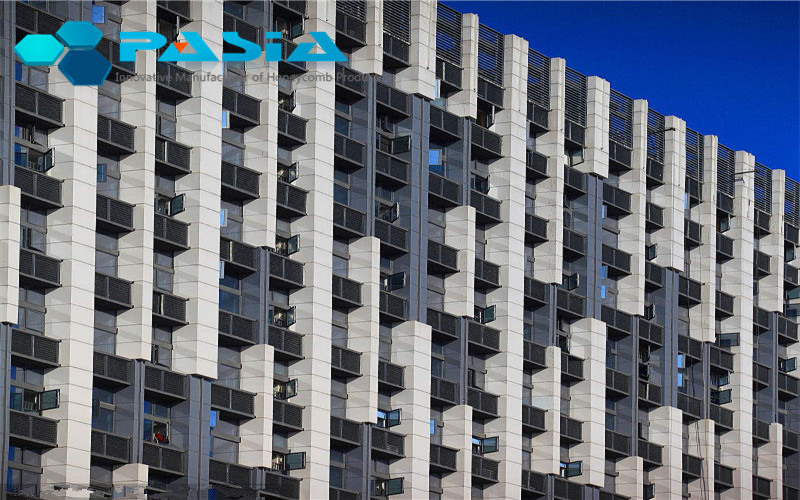

(1) building external curtain wall panel
(2) interior decoration works
(3) billboards
(4) ship building
(5) aviation manufacturing industry
(6) indoor partition and commodity display stand
(7) Commercial vehicle and container truck body
(8) bus, train and subway use
(9)With strict environmental requirements of the modern furniture
industry, aluminum honeycomb panel is an ideal material to produce
furniture. Depending on Its completely non-toxic green quality, it
is not necessary for the furniture manufacturers to process
environmental procedures. In addition, the surface veneer for
aluminum honeycomb panels can be diversified such as solid wood,
aluminum, gypsum board, natural marble etc
(10) aluminum honeycomb panel partition: the emergence of aluminum
honeycomb panel partition breaks the traditional partition mode,
with a noble and fresh style.
